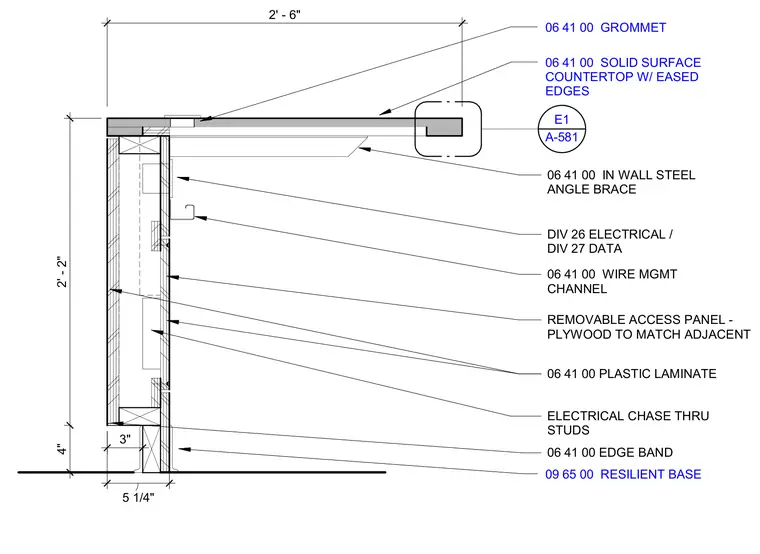

The assembly features a solid surface countertop with eased edges and a surface-mounted grommet, supported underneath by an in-wall steel angle brace. The front counter base consists of plastic laminate over a plywood substrate with edge banding, tied into interior steel studs and an electrical chase. A removable plywood access panel allows entry to the interior, which accommodates a wire management channel for division 26 electrical and division 27 data routing. The base terminates at the floor with a resilient base trim.
06 41 00 WIRE MGMT CHANNEL 06 41 00 IN WALL STEEL ANGLE BRACE DIV 26 ELECTRICAL / DIV 27 DATA REMOVABLE ACCESS PANEL - PLYWOOD TO MATCH ADJACENT ELECTRICAL CHASE THRU STUDS 06 41 00 PLASTIC LAMINATE 06 41 00 EDGE BAND 4" 2' - 2" 2' - 6" 06 41 00 SOLID SURFACE COUNTERTOP W/ EASED EDGES 3" A-581 E1 09 65 00 RESILIENT BASE 06 41 00 GROMMET 5 1/4"
