Architectural · A-54ZVE

Elevator Control Panel

Elements

About this detail

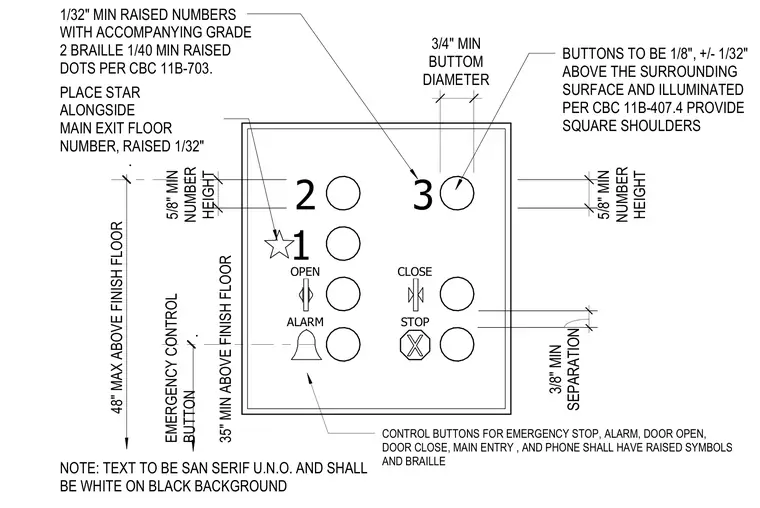

An interior architectural assembly complies with California Building Code 11B-703 and 11B-407.4 for elevator control panels. Illuminated push buttons feature square shoulders projecting 1/8 inch, plus or minus 1/32 inch, above the surrounding surface. Number heights are a minimum of 5/8 inch with 1/32 inch minimum raised characters accompanied by Grade 2 Braille having 1/40 inch minimum raised dots. A star symbol is placed alongside the main exit floor number, positioned at a maximum of 48 inches above the finish floor. Emergency control buttons for stop, alarm, door open, door close, main entry, and phone include raised symbols, braille, and a minimum separation of 3/8 inch. The emergency control button is located a minimum of 35 inches above the finish floor. Text is specified as sans serif and white on a black background.
