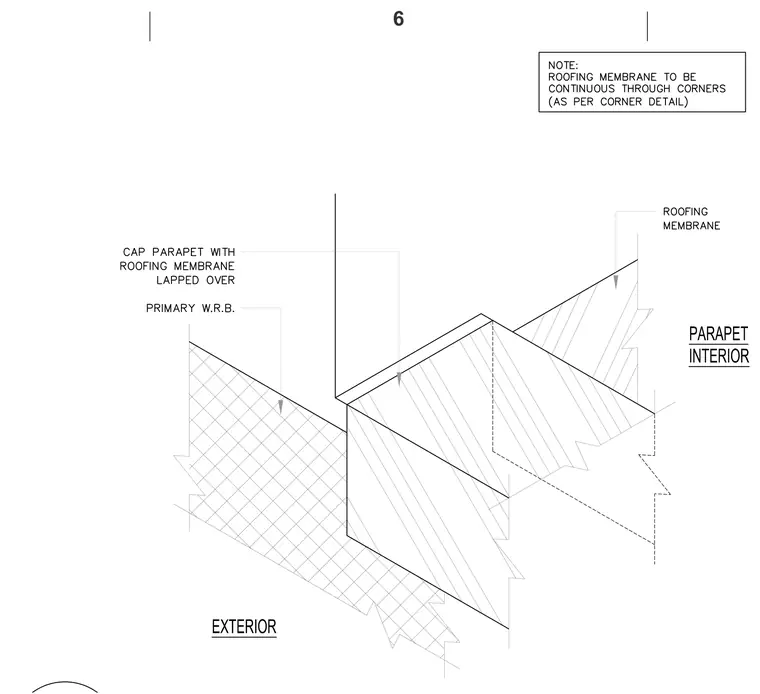

A parapet wall corner waterproofed with a roofing membrane lapped continuously over the cap and tied into the primary water-resistive barrier. A drawing note specifies that the roofing membrane must remain continuous through all corners as shown. The exterior wall assembly features a primary water-resistive barrier beneath the exterior finish.
