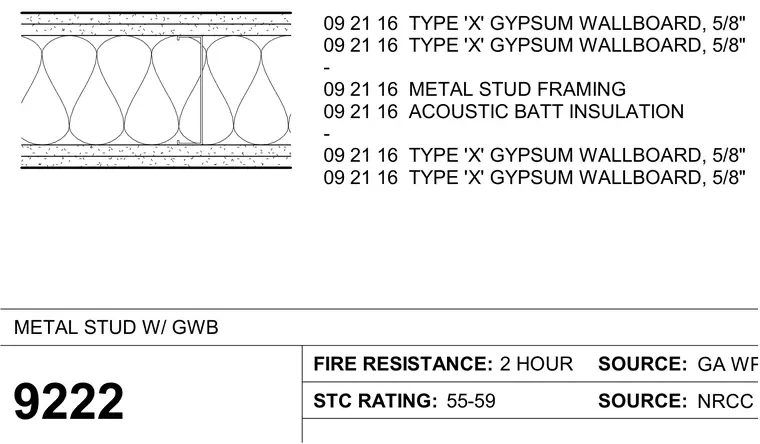

This two-hour fire-rated partition assembly consists of cold-formed metal stud framing filled with acoustic batt insulation and faced on both sides with double layers of five-eighths inch type X gypsum wallboard. The interior cavity contains acoustic insulation to provide an STC rating between 55 and 59.
FIRE RESISTANCE: STC RATING: SOURCE: SOURCE: 9222 2 HOUR GA WP 1522 METAL STUD W/ GWB 09 21 16 TYPE 'X' GYPSUM WALLBOARD, 5/8" 09 21 16 TYPE 'X' GYPSUM WALLBOARD, 5/8" - 09 21 16 METAL STUD FRAMING 09 21 16 ACOUSTIC BATT INSULATION - 09 21 16 TYPE 'X' GYPSUM WALLBOARD, 5/8" 09 21 16 TYPE 'X' GYPSUM WALLBOARD, 5/8" NRCC TL-94-040 55-59
