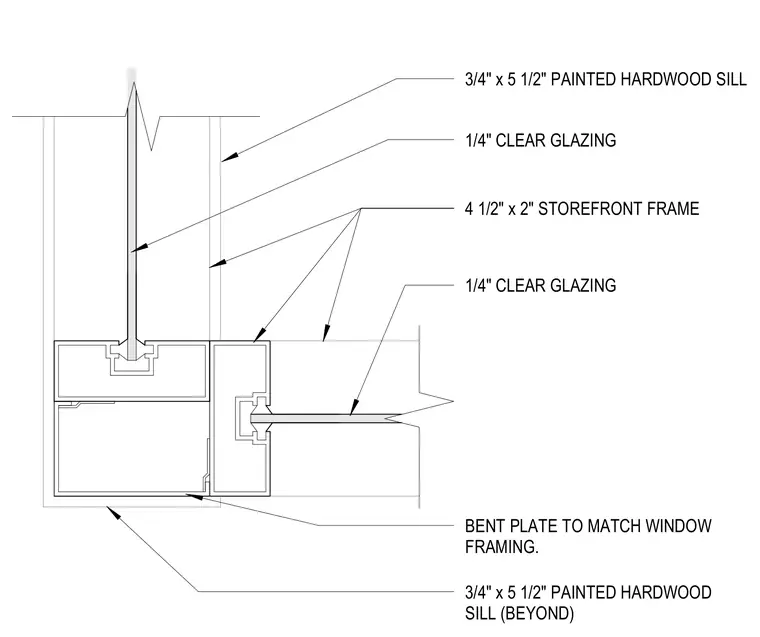

A 4 1/2-inch by 2-inch storefront frame holds 1/4-inch clear glazing panels. A bent plate is fitted to match the window framing profile. A 3/4-inch by 5 1/2-inch painted hardwood sill is installed at the base, with a similar hardwood sill shown beyond.
3/4" x 5 1/2" PAINTED HARDWOOD SILL 1/4" CLEAR GLAZING 4 1/2" x 2" STOREFRONT FRAME 1/4" CLEAR GLAZING 3/4" x 5 1/2" PAINTED HARDWOOD SILL (BEYOND) BENT PLATE TO MATCH WINDOW FRAMING.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
