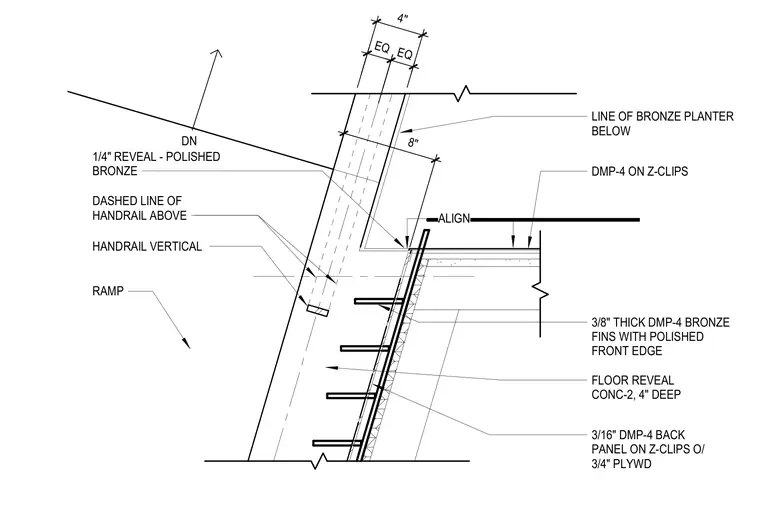

A ramp landing and bronze planter junction assembly incorporates 3/8-inch thick DMP-4 bronze fins with polished front edges and a 3/16-inch DMP-4 back panel mounted on Z-clips over 3/4-inch plywood. A four-inch deep floor reveal is designated as CONC-2. The ramp features a handrail vertical with a dashed line indicating the handrail above. Additional callouts specify a 1/4-inch polished bronze reveal and alignment with the bronze planter below.
FLOOR REVEAL CONC-2, 4" DEEP 3/8" THICK DMP-4 BRONZE FINS WITH POLISHED FRONT EDGE 3/16" DMP-4 BACK PANEL ON Z-CLIPS O/ 3/4" PLYWD DASHED LINE OF HANDRAIL ABOVE HANDRAIL VERTICAL RAMP DN E Q 8 " E Q 4 " DMP-4 ON Z-CLIPS 1/4" REVEAL - POLISHED BRONZE LINE OF BRONZE PLANTER BELOW ALIGN
