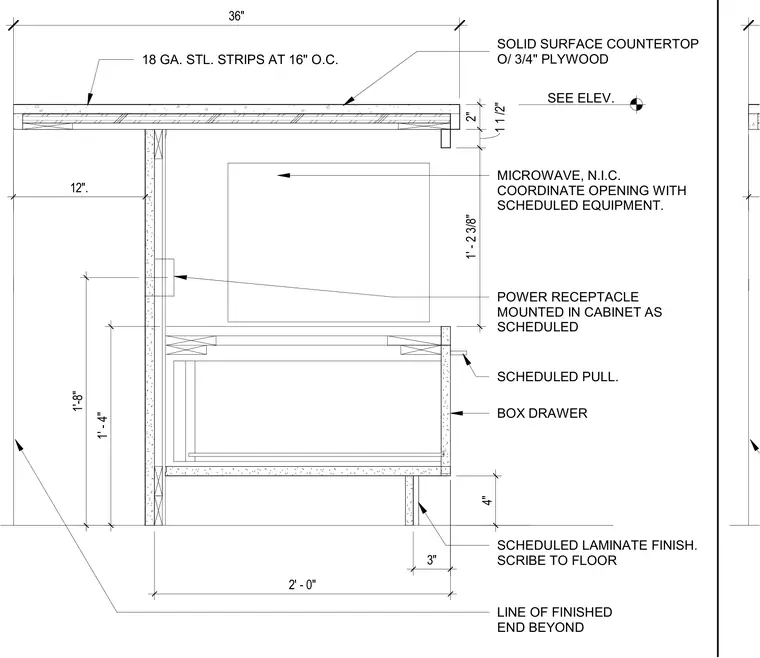

This millwork section details a kitchen island casework assembly designed to house a microwave and a box drawer. The solid surface countertop sits over three-quarter-inch plywood backed by eighteen-gauge steel strips spaced at sixteen inches on center. The unit includes a designated microwave opening coordinated with scheduled equipment, leaving the appliance not in contract. A power receptacle is mounted inside the cabinet as scheduled. The base includes a scheduled laminate finish scribed to the floor, complete with a scheduled pull hardware.
4" 12". 36" MICROWAVE, N.I.C. COORDINATE OPENING WITH SCHEDULED EQUIPMENT. POWER RECEPTACLE MOUNTED IN CABINET AS SCHEDULED BOX DRAWER SEE ELEV. SOLID SURFACE COUNTERTOP O/ 3/4" PLYWOOD 18 GA. STL. STRIPS AT 16" O.C. SCHEDULED LAMINATE FINISH. SCRIBE TO FLOOR LINE OF FINISHED END BEYOND SCHEDULED PULL. 1' - 4" 1'-8" 2" 1 1 /2" 1' - 2 3/8" 3" 2' - 0"
