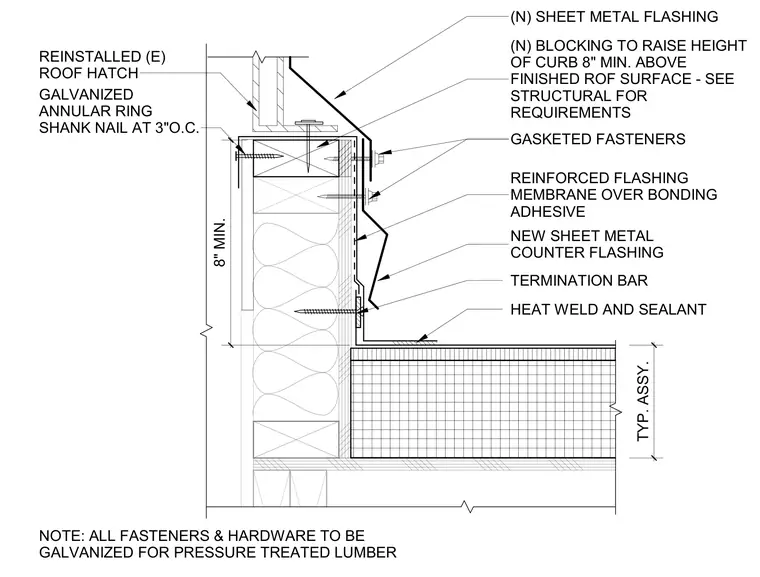

New wood blocking raises the height of the curb to eight inches minimum above the finished roof surface. The assembly features a reinforced flashing membrane adhered over the blocking with a termination bar, sealed with heat weld and sealant. A new sheet metal counter flashing and sheet metal flashing tie into the reinstated existing roof hatch using gasketed fasteners and galvanized annular ring shank nails at three inches on center. All fasteners and hardware are galvanized for use with pressure treated lumber.
NOTE: ALL FASTENERS & HARDWARE TO BE GALVANIZED FOR PRESSURE TREATED LUMBER GASKETED FASTENERS REINSTALLED (E) ROOF HATCH GALVANIZED ANNULAR RING SHANK NAIL AT 3"O.C. HEAT WELD AND SEALANT NEW SHEET METAL COUNTER FLASHING REINFORCED FLASHING MEMBRANE OVER BONDING ADHESIVE TERMINATION BAR (N) BLOCKING TO RAISE HEIGHT OF CURB 8" MIN. ABOVE FINISHED ROF SURFACE - SEE STRUCTURAL FOR REQUIREMENTS TYP. ASSY. 8" MIN. (N) SHEET METAL FLASHING
