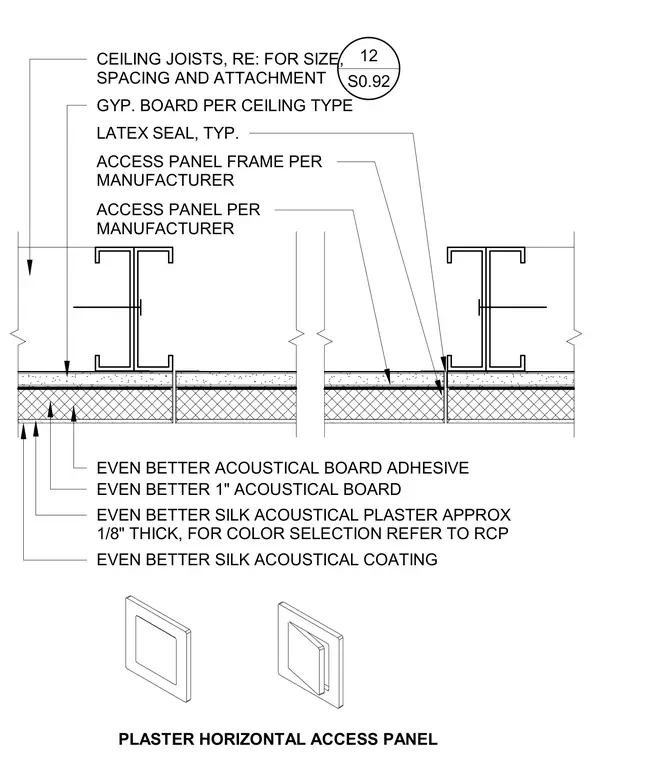

An acoustical plaster horizontal access panel is integrated into a gypsum board ceiling assembly supported by steel ceiling joists sized per structural plans. A one-inch acoustical board is secured to the gypsum board using acoustical board adhesive, with a typical latex seal at the perimeter. The assembly is finished with approximately one-eighth-inch thick silk acoustical plaster and a silk acoustical coating. The access panel frame and panel are installed per the manufacturer's specifications to maintain the continuous acoustical ceiling finish.
GYP. BOARD PER CEILING TYPE CEILING JOISTS, RE: FOR SIZE, SPACING AND ATTACHMENT 12 S0.92 EVEN BETTER ACOUSTICAL BOARD ADHESIVE EVEN BETTER 1" ACOUSTICAL BOARD EVEN BETTER SILK ACOUSTICAL PLASTER APPROX 1/8" THICK, FOR COLOR SELECTION REFER TO RCP EVEN BETTER SILK ACOUSTICAL COATING LATEX SEAL, TYP. ACCESS PANEL FRAME PER MANUFACTURER ACCESS PANEL PER MANUFACTURER PLASTER HORIZONTAL ACCESS PANEL
