Architectural · A-53TFK

Stair Handrail Bracket Connection at Metal Stud Partition

Materials

Steel Timber / Wood

Elements

Partitions Stairs Railings / Guards Connections / Plates

Connections

Welded Connection

About this detail

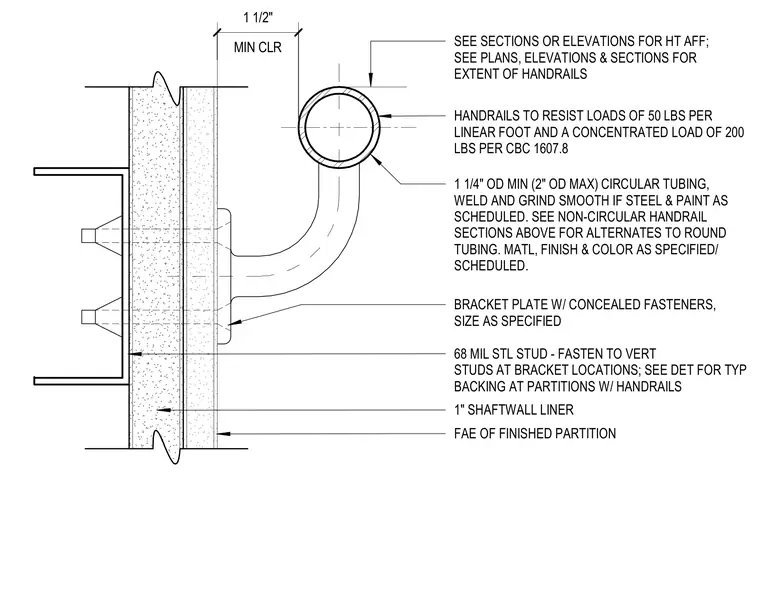

A circular handrail ranging from one and one-quarter inches to two inches outside diameter connects to a bracket plate with concealed fasteners, which secures through the finished partition to sixty-eight mil steel studs with one-inch shaftwall liner backing. The assembly maintains a minimum one and one-half inch clearance from the face of the finished partition to the inside face of the handrail. Steel handrail joints are welded and ground smooth, with material, finish, and color matching the schedule. The wall backing fastens to vertical studs at bracket locations to support handrail loads of fifty pounds per linear foot and a concentrated load of two hundred pounds per CBC code.
