Architectural · A-53MPA

Stone Veneer at Roof Edge Parapet Detail

Materials

Steel Cold-formed Steel Timber / Wood Masonry / CMU Stone Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Facades / Cladding Roofs Parapets Decks Waterproofing / Flashing Insulation Anchors / Embeds Connections / Plates

About this detail

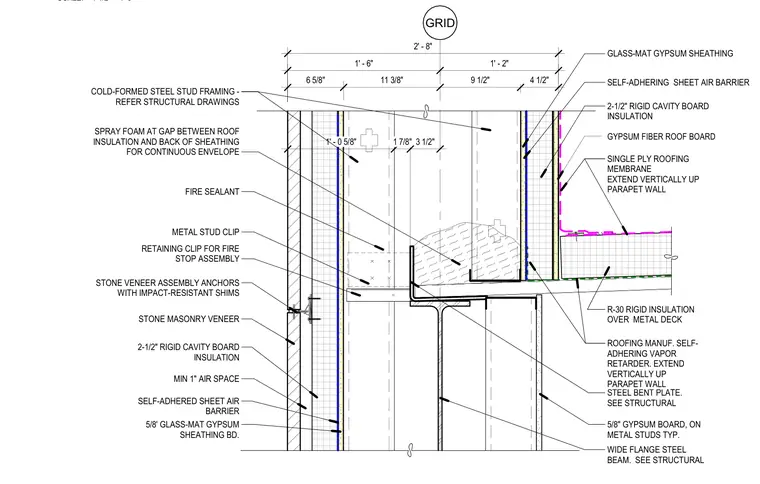

Stone veneer facade interfaces with a roof edge and parapet wall assembly over a wide flange steel beam and metal deck. The roof assembly consists of R-30 rigid insulation over metal deck, topped with a gypsum fiber roof board and a single-ply roofing membrane that extends vertically up the parapet wall over a self-adhering vapor retarder. The exterior wall features stone masonry veneer supported by stone veneer assembly anchors with impact-resistant shims, maintaining a minimum 1-inch air space over 2-1/2 inches of rigid cavity board insulation and self-adhered sheet air barrier applied to 5/8-inch glass-mat gypsum sheathing. Cold-formed steel stud framing ties back to the structure, while spray foam fills the gap between the roof insulation and the back of the sheathing for a continuous thermal and air envelope. A steel bent plate connects to the wide flange beam to support the parapet wall, supplemented by metal stud clips, retaining clips for the fire stop assembly, and fire sealant.
