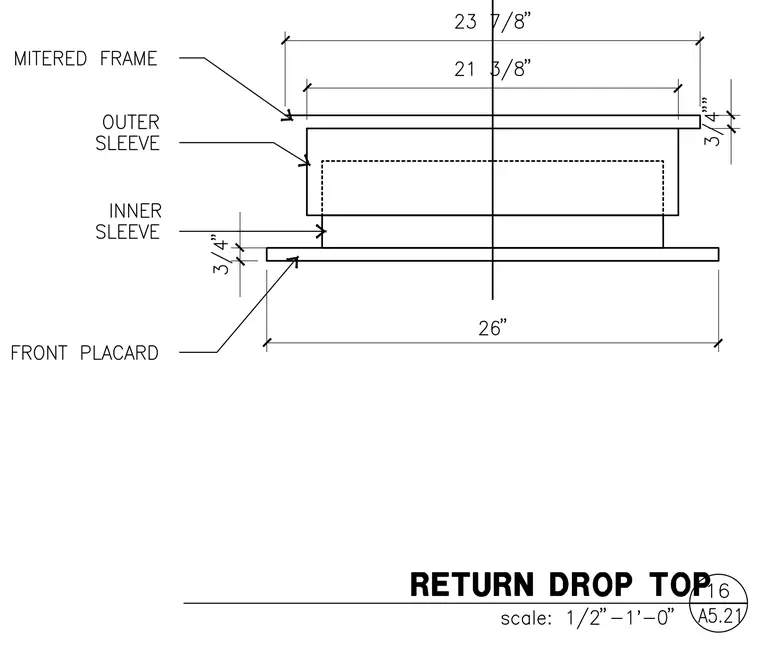

The return drop top assembly consists of a mitered frame paired with an outer sleeve and an inner sleeve. A front placard spans the assembly with an overall width of twenty-six inches. The upper mitered frame measures twenty-three and seven-eighths inches wide overall, with a twenty-one and three-eighths inch interior dimension. Both the top frame and bottom placard components have a thickness of three-quarters of an inch.
