Supplemental Hanger at Light Fixture for Suspended Ceiling Grid

About this detail

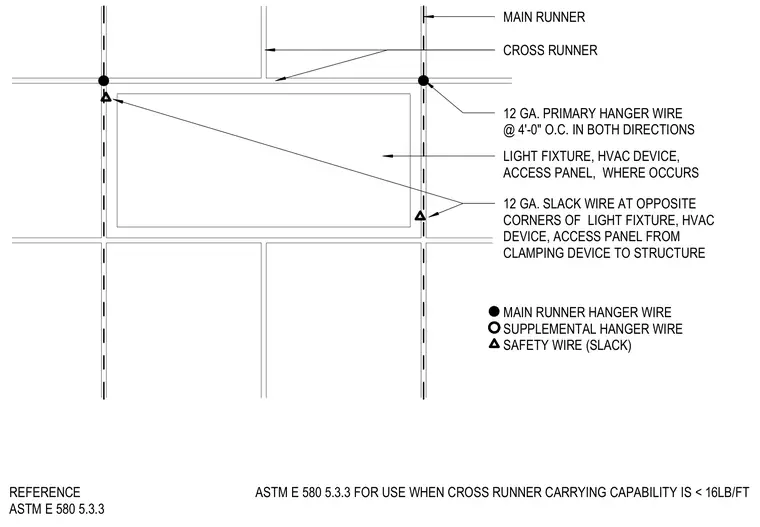

Suspended acoustical ceiling grids incorporate twelve-gauge primary hanger wires spaced at four feet on center in both directions to support main runners and cross runners. Supplemental twelve-gauge slack wires are attached at opposite corners of light fixtures, HVAC devices, and access panels from the clamping device to the structure. Safety wires provide lateral support in accordance with ASTM E 580 section 5.3.3 for use when cross runner carrying capability is less than sixteen pounds per foot.
