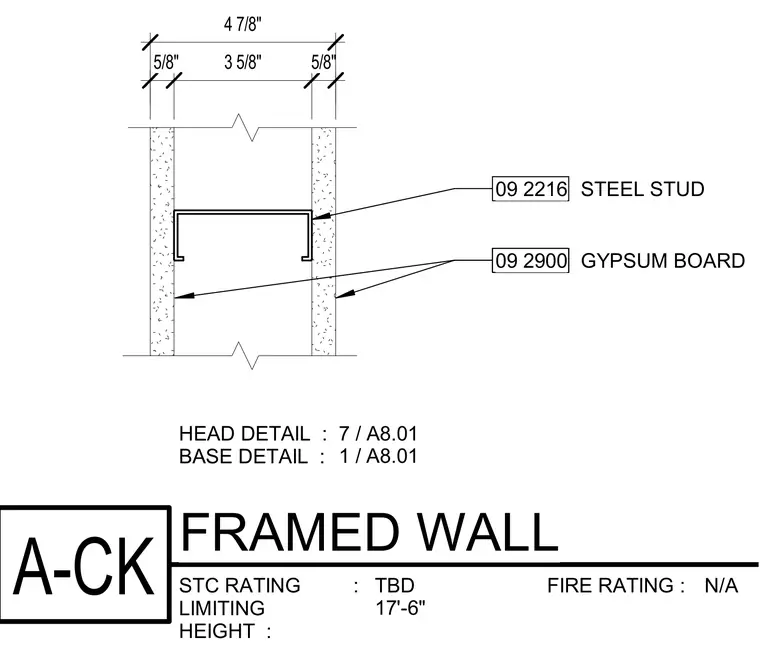

This interior partition assembly consists of three-and-five-eighths-inch steel studs framed at a total wall thickness of four-and-seven-eighths inches. Each side of the stud framing receives a five-eighths-inch layer of gypsum board. The assembly is dimensioned with a limiting height of seventeen feet six inches, with STC rating marked as TBD and fire rating marked as N/A. Head and base details reference sheet A8.01.
5/8" 3 5/8" 5/8" 09 2216 STEEL STUD 4 7/8" 09 2900 GYPSUM BOARD STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : A-CK FRAMED WALL TBD N/A 17'-6" 7 / A8.01 1 / A8.01 09 2900 GYPSUM BOARD
