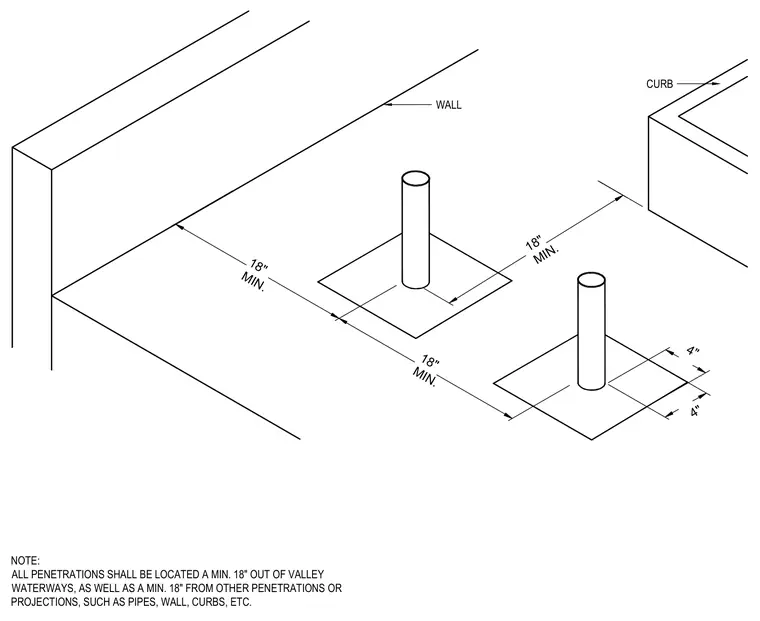

Roof penetrations such as pipes require a minimum clearance of eighteen inches from valley waterways, walls, curbs, and other projections. Penetrations must also maintain an eighteen-inch minimum separation distance from each other.
18" MIN. 18" MIN. 4" 18" MIN. 4" CURB WALL NOTE: ALL PENETRATIONS SHALL BE LOCATED A MIN. 18" OUT OF VALLEY WATERWAYS, AS WELL AS A MIN. 18" FROM OTHER PENETRATIONS OR PROJECTIONS, SUCH AS PIPES, WALL, CURBS, ETC.
