Mechanical · A-537MX

Reheat Coil (2-Way Control Valve)

Elements

About this detail

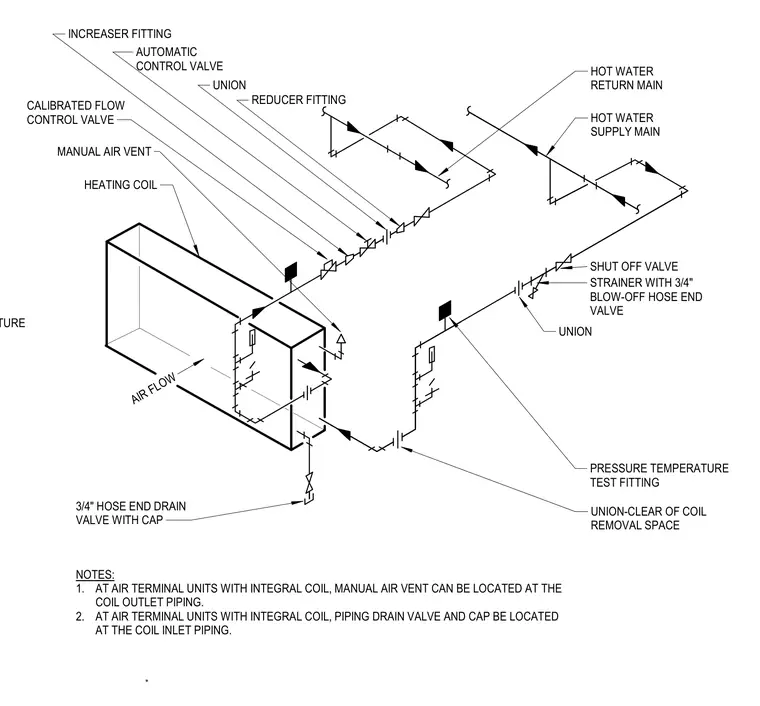

The heating coil connects to hot water supply and return mains through an arrangement of shut-off valves, unions, and a strainer with a three-quarter-inch blow-off hose end valve. A calibrated flow control valve, automatic control valve, and pressure temperature test fittings regulate the flow into the coil. Unions are positioned clear of the coil removal space to facilitate maintenance. A manual air vent is installed at the coil outlet piping, and a three-quarter-inch hose end drain valve with cap is located at the coil inlet piping.
