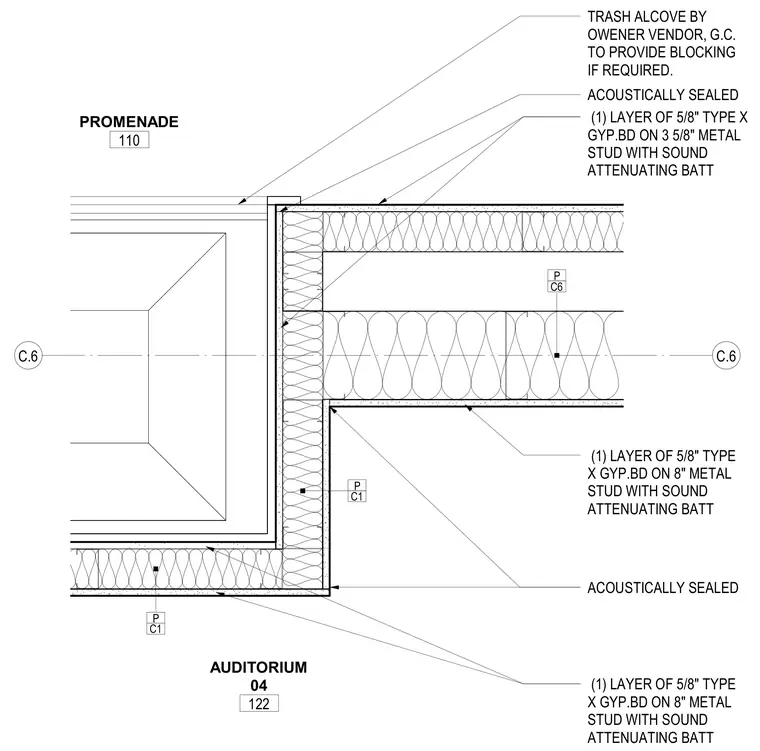

An interior wall intersection detail showing cold-formed metal stud framing with sound-attenuating batt insulation and gypsum board layers at a trash alcove adjacent to an auditorium. The assembly consists of one layer of 5/8-inch Type X gypsum board on either 3-5/8-inch or 8-inch metal studs, with joints acoustically sealed. The general contractor provides required blocking for the trash alcove furnished by the owner vendor.
C.6 C.6 C6 P C1 P C1 P PROMENADE 110 AUDITORIUM 04 122 (1) LAYER OF 5/8" TYPE X GYP.BD ON 8" METAL STUD WITH SOUND ATTENUATING BATT (1) LAYER OF 5/8" TYPE X GYP.BD ON 3 5/8" METAL STUD WITH SOUND ATTENUATING BATT ACOUSTICALLY SEALED ACOUSTICALLY SEALED (1) LAYER OF 5/8" TYPE X GYP.BD ON 8" METAL STUD WITH SOUND ATTENUATING BATT TRASH ALCOVE BY OWENER VENDOR, G.C. TO PROVIDE BLOCKING IF REQUIRED.
