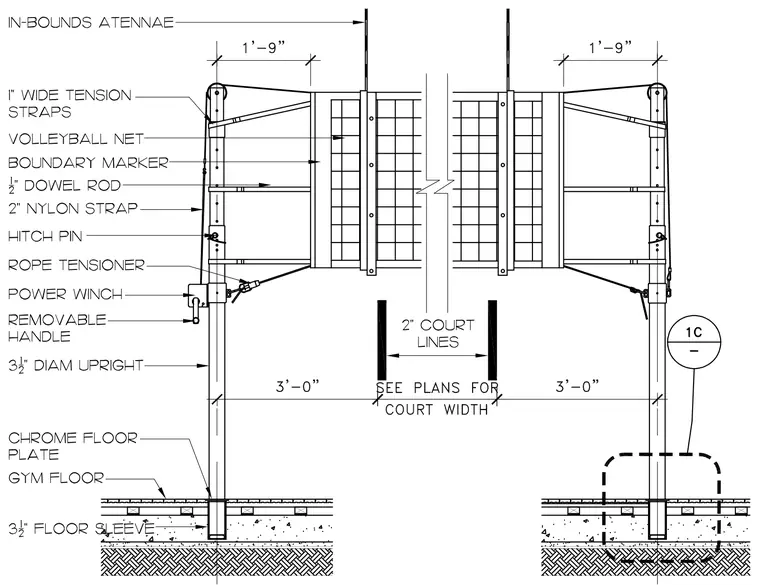

This assembly details a gym volleyball net system anchored into floor sleeves set within the gymnasium floor slab. The three-and-a-half-inch diameter upright posts insert into matching three-and-a-half-inch floor sleeves equipped with chrome floor plates at the finished floor level. The net is tensioned using one-inch wide tension straps, rope tensioners, and a power winch with a removable handle secured by a hitch pin. Additional components include half-inch dowel rods, two-inch nylon straps, boundary markers, and in-bounds antennae. Two-inch court lines are marked on the floor, with the overall court width determined per the architectural plans.
