A continuous eighteen gauge metal plate is fastened to the concrete deck at two feet on center staggered. A slip track runner is fastened to the plate at two feet on center, maintaining a one-half inch deflection space left free of fasteners to studs and gypsum board. Fire safing sealant is applied continuously on each side of the track.

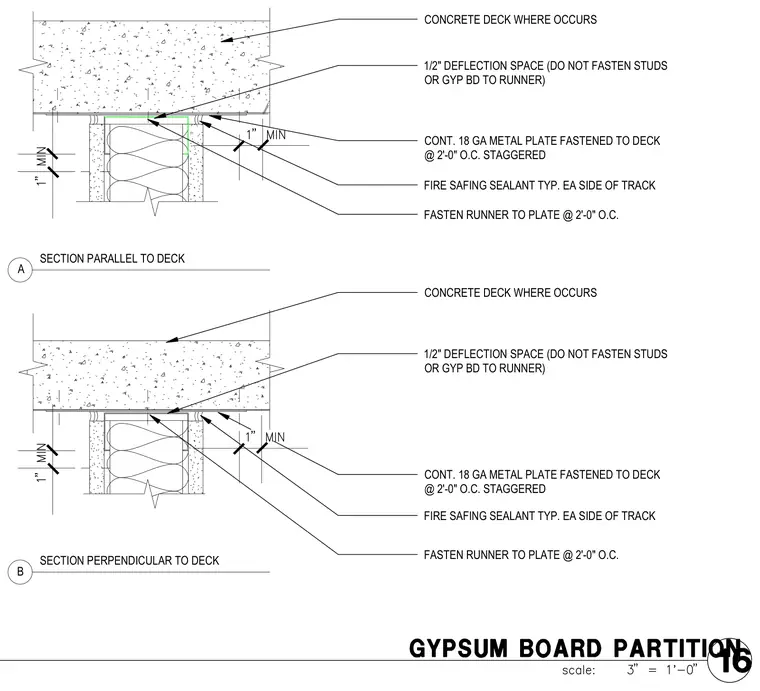

CONCRETE DECK WHERE OCCURS SECTION PARALLEL TO DECK A SECTION PERPENDICULAR TO DECK B 1/2" DEFLECTION SPACE (DO NOT FASTEN STUDS OR GYP BD TO RUNNER) CONT. 18 GA METAL PLATE FASTENED TO DECK @ 2'-0" O.C. STAGGERED FIRE SAFING SEALANT TYP. EA SIDE OF TRACK FASTEN RUNNER TO PLATE @ 2'-0" O.C. 1/2" DEFLECTION SPACE (DO NOT FASTEN STUDS OR GYP BD TO RUNNER) CONT. 18 GA METAL PLATE FASTENED TO DECK @ 2'-0" O.C. STAGGERED FIRE SAFING SEALANT TYP. EA SIDE OF TRACK FASTEN RUNNER TO PLATE @ 2'-0" O.C. CONCRETE DECK WHERE OCCURS
