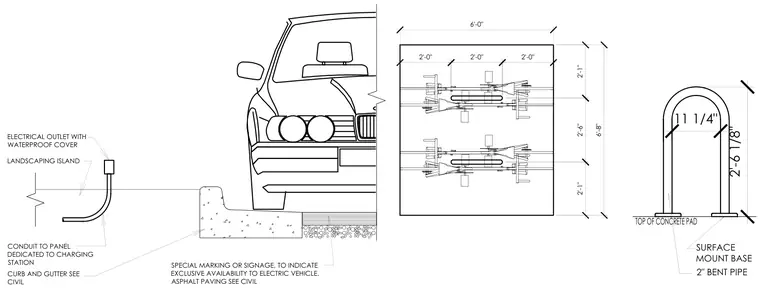

An electric vehicle charging station layout is detailed with a concrete curb and gutter adjacent to asphalt paving. An electrical outlet with a waterproof cover connects via conduit to a panel dedicated to the charging station. A surface-mounted 2-inch bent pipe bollard sits atop a concrete pad measuring two feet six and one-eighth inches high, with an overall width of six feet. Special marking or signage indicates exclusive availability to electric vehicles.
LANDSCAPING ISLAND ELECTRICAL OUTLET WITH WATERPROOF COVER CONDUIT TO PANEL DEDICATED TO CHARGING STATION CURB AND GUTTER SEE CIVIL SPECIAL MARKING OR SIGNAGE, TO INDICATE EXCLUSIVE AVAILABILITY TO ELECTRIC VEHICLE. ASPHALT PAVING SEE CIVIL SURFACE MOUNT BASE 2'-6 1/8" TOP OF CONCRETE PAD 11 1/4" 2" BENT PIPE 6'-0" 2'-1" 2'-6" 2'-0" 2'-0" 2'-0" 6'-8" 2'-1"
