Architectural · A-52GBW

Suspended Ceiling Wall Attachment Fixed and Free Ends

Materials

Elements

About this detail

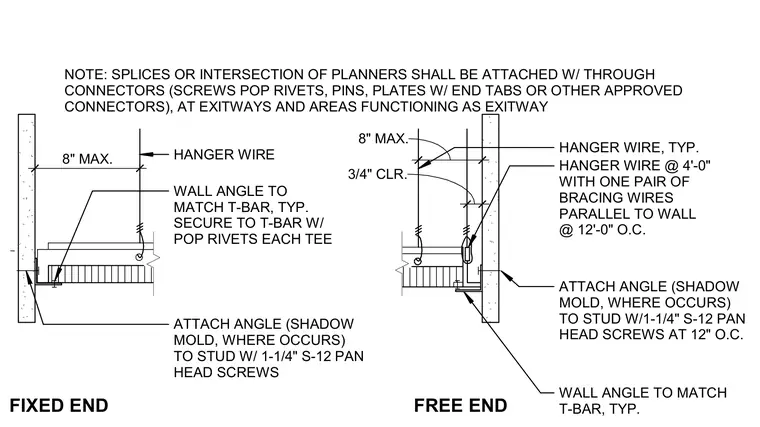

The suspended ceiling is supported by hanger wires spaced at four feet on center, with one pair of bracing wires parallel to the wall at twelve feet on center for the free end condition. A wall angle acting as a shadow mold is attached to the wall stud using one and one-quarter inch S-12 pan head screws at twelve inches on center. The wall angle matches the T-bar and is secured to the T-bar with pop rivets at each tee. Splices or intersections of planners are attached with through connectors at exitways and areas functioning as exitways.
