An expansion joint assembly spans between framed structural elements with a custom taper fabricated by an expansion joint manufacturer. Flanges wrap around 45-degree chamfered edges with a typical 3/4-inch by 3/4-inch chamfered edge profile. Fasteners secure the components per the manufacturer recommendations with a 4-inch minimum overlap. Caulk and backer rod are applied at panel joints where required per plan.

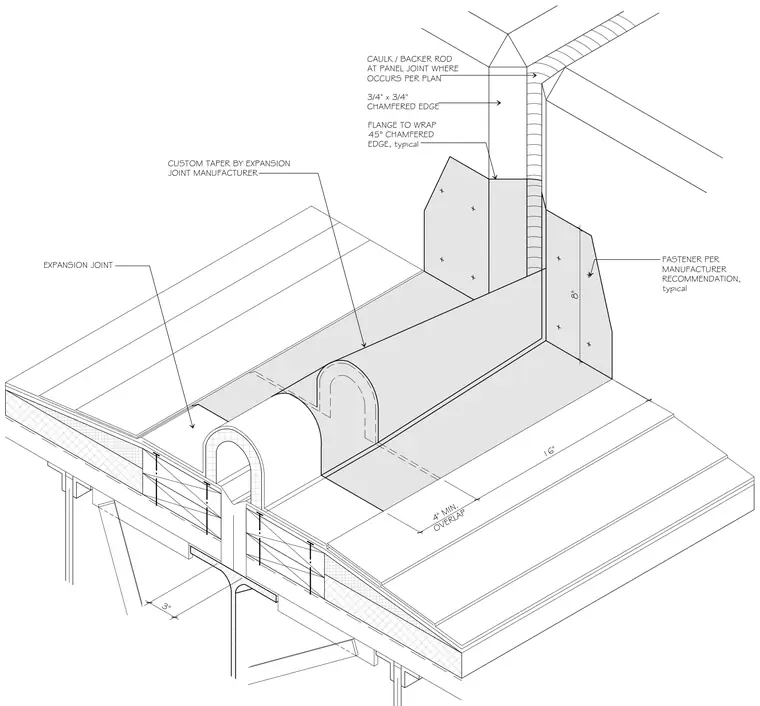

EXPANSION JOINT CUSTOM TAPER BY EXPANSION JOINT MANUFACTURER FASTENER PER MANUFACTURER RECOMMENDATION, typical FLANGE TO WRAP 45° CHAMFERED EDGE, typical 3/4" x 3/4" CHAMFERED EDGE CAULK / BACKER ROD AT PANEL JOINT WHERE OCCURS PER PLAN 4" MIN. OVERLAP 16" 3" 8" -t- I\ t t / t i- \ \J X x>
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
