Structural · A-527FF

Steel Pipe Bollard with Concrete Foundation and Guard Channel

Materials

Elements

Vaults / Domes Site / Paving Connections / Plates Reinforcing

About this detail

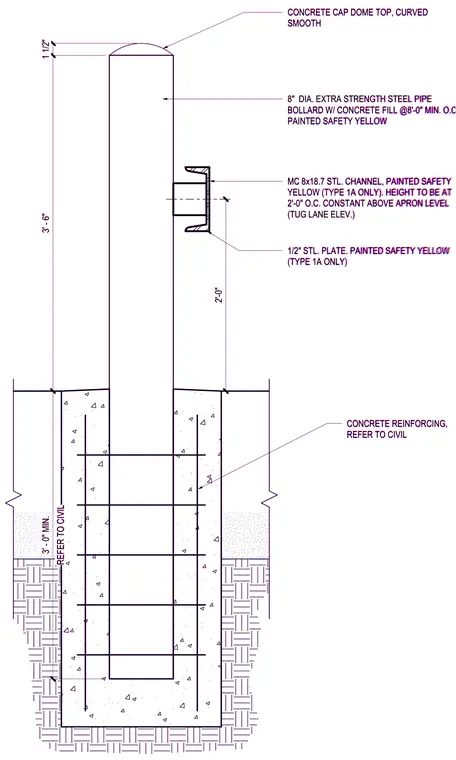

An 8-inch diameter extra-strength steel pipe bollard is embedded into a reinforced concrete footing and filled with concrete, featuring a curved smooth concrete cap at its top. A painted safety yellow MC 8x18.7 steel channel is attached to the bollard via a one-half-inch steel plate, positioned at a constant height of two feet above the apron level for Type 1A installations. Concrete reinforcing within the foundation footing is sized per civil engineering drawings, with a minimum depth of three feet. The entire exterior assembly is painted safety yellow for high visibility.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
