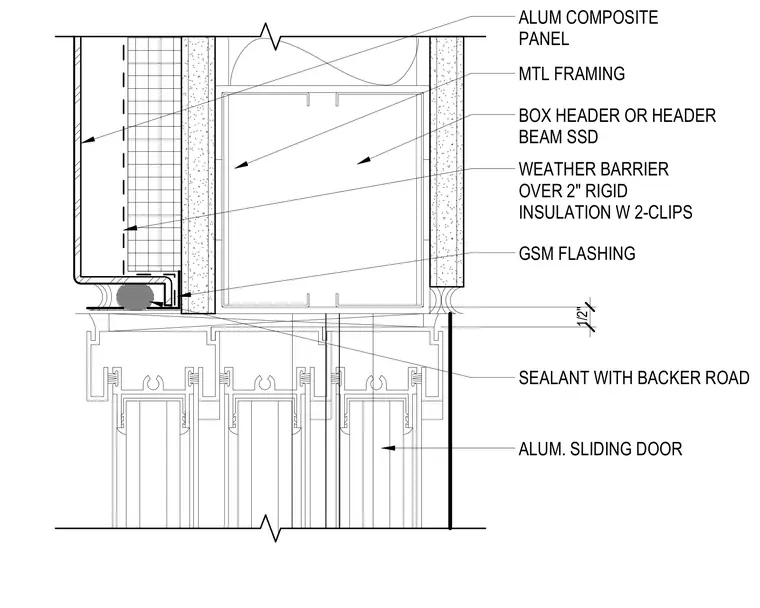

An aluminum sliding door is installed beneath a box header or header beam framed with metal studs and clad with aluminum composite panels. A weather barrier is installed over two inches of rigid insulation with clips, accompanied by galvanized sheet metal flashing at the head condition. A one-half-inch clearance is maintained above the door frame, sealed with joint sealant and backer rod.
ALUM COMPOSITE PANEL MTL FRAMING BOX HEADER OR HEADER BEAM SSD WEATHER BARRIER OVER 2" RIGID INSULATION W 2-CLIPS GSM FLASHING 1/2" ALUM. SLIDING DOOR SEALANT WITH BACKER ROAD
