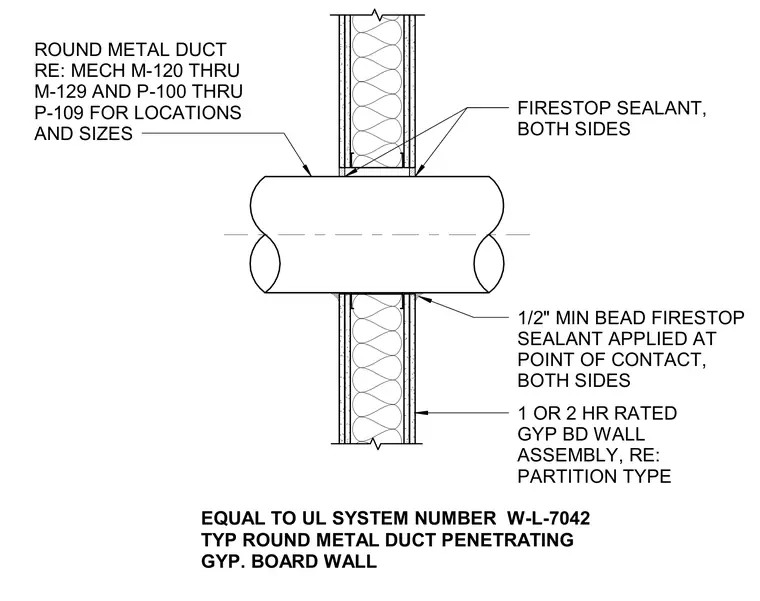

A round metal duct passes horizontally through a one or two-hour rated gypsum board wall assembly framed with metal studs. An approved firestop sealant is applied at the point of contact on both sides of the partition with a one-half-inch minimum bead. The penetration complies with Underwriters Laboratories system number W-L-7042.
EQUAL TO UL SYSTEM NUMBER W-L-7042 TYP ROUND METAL DUCT PENETRATING GYP. BOARD WALL 1 OR 2 HR RATED GYP BD WALL ASSEMBLY, RE: PARTITION TYPE FIRESTOP SEALANT, BOTH SIDES 1/2" MIN BEAD FIRESTOP SEALANT APPLIED AT POINT OF CONTACT, BOTH SIDES ROUND METAL DUCT RE: MECH M-120 THRU M-129 AND P-100 THRU P-109 FOR LOCATIONS AND SIZES
