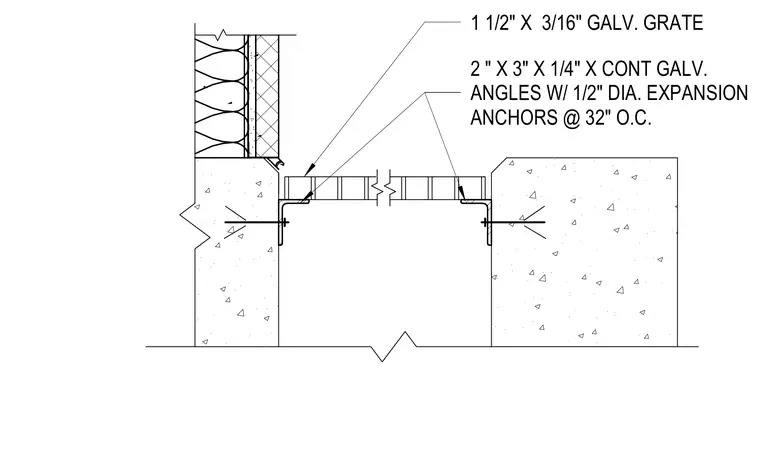

A 1 1/2-inch by 3/16-inch galvanized steel grate bears on continuous 2-inch by 3-inch by 1/4-inch galvanized steel angles. The support angles are secured to concrete walls using 1/2-inch diameter expansion anchors spaced at 32 inches on center.
1 1/2" X 3/16" GALV. GRATE 2 " X 3" X 1/4" X CONT GALV. ANGLES W/ 1/2" DIA. EXPANSION ANCHORS @ 32" O.C.
