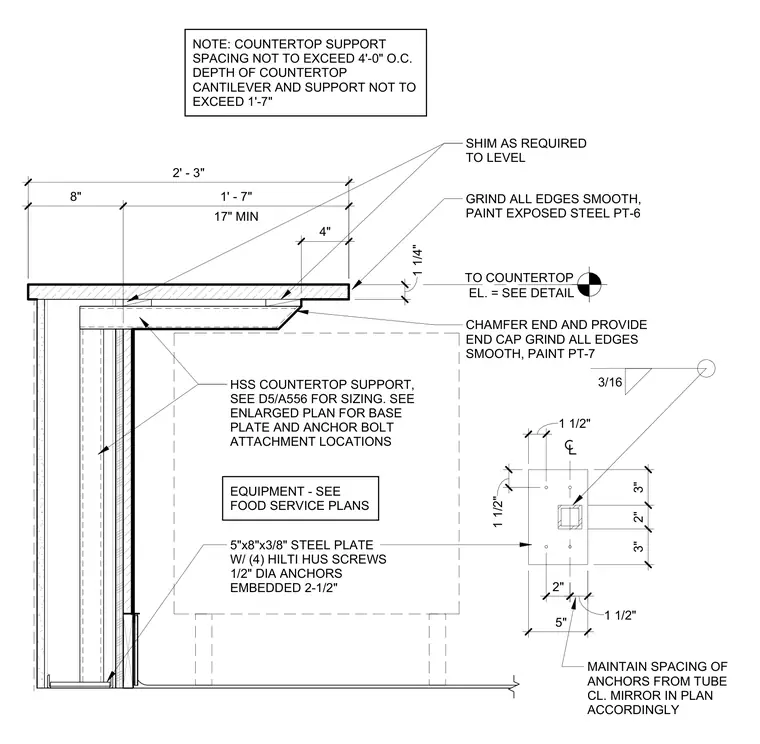

A structural steel hollow structural section cantilever bracket supports a countertop with a maximum projection of 1'-7". The hollow structural section support member is welded with a 3/16-inch fillet weld to a 5"x8"x3/8" steel base plate. The base plate is anchored using four 1/2-inch diameter Hilti HUS concrete screw anchors embedded 2-1/2 inches into the support wall. Shims are provided as required to level the equipment, and all exposed steel edges are ground smooth and finished with specified paint coats PT-6 and PT-7.
TO COUNTERTOP EL. = SEE DETAIL HSS COUNTERTOP SUPPORT, SEE D5/A556 FOR SIZING. SEE ENLARGED PLAN FOR BASE PLATE AND ANCHOR BOLT ATTACHMENT LOCATIONS 5"x8"x3/8" STEEL PLATE W/ (4) HILTI HUS SCREWS 1/2" DIA ANCHORS EMBEDDED 2-1/2" 3" 2" 3" 1 1/2" 1 1/2" 5" 1 1/2" 3/16 2" MAINTAIN SPACING OF ANCHORS FROM TUBE CL. MIRROR IN PLAN ACCORDINGLY GRIND ALL EDGES SMOOTH, PAINT EXPOSED STEEL PT-6 SHIM AS REQUIRED TO LEVEL EQUIPMENT - SEE FOOD SERVICE PLANS CHAMFER END AND PROVIDE END CAP GRIND ALL EDGES SMOOTH, PAINT PT-7 1 1/4" 8" 17" MIN 1' - 7" NOTE: COUNTERTOP SUPPORT SPACING NOT TO EXCEED 4'-0" O.C. DEPTH OF COUNTERTOP CANTILEVER AND SUPPORT NOT TO EXCEED 1'-7" 4" 2' - 3"
