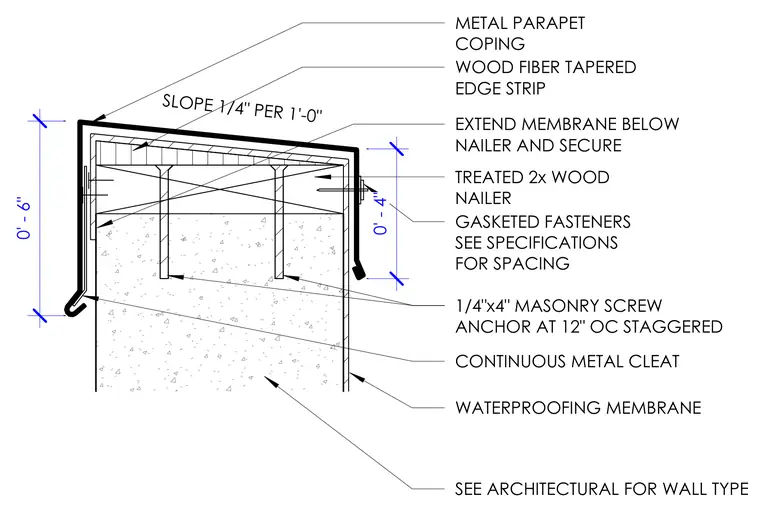

A metal parapet coping caps the top of a masonry wall, set over a wood fiber tapered edge strip that provides a slope of one-quarter inch per foot. The assembly is anchored to treated two-by wood nailers secured directly to the top of the wall. A continuous metal cleat holds the outer edge of the coping, fastened with gasketed fasteners spaced per specifications. A waterproofing membrane extends below the nailer and is secured against the wall face. Masonry screw anchors measuring one-quarter inch by four inches are installed at twelve inches on center staggered.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 0' - 6" 0' - 4" SEE ARCHITECTURAL FOR WALL TYPE
