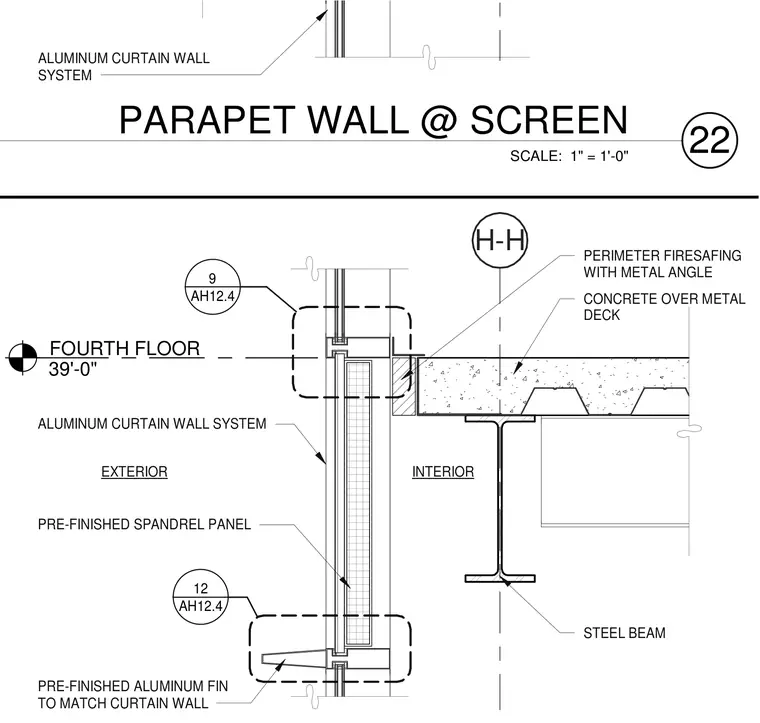

An aluminum curtain wall system anchors past the edge of a concrete slab over a metal deck supported by a steel beam. Perimeter firesafing is installed at the slab edge with a metal angle. The assembly incorporates a pre-finished spandrel panel and a pre-finished aluminum fin matching the curtain wall.
ALUMINUM CURTAIN WALL SYSTEM H-H FOURTH FLOOR 39'-0" AH12.4 9 AH12.4 12 EXTERIOR INTERIOR CONCRETE OVER METAL DECK PERIMETER FIRESAFING WITH METAL ANGLE STEEL BEAM ALUMINUM CURTAIN WALL SYSTEM PRE-FINISHED SPANDREL PANEL PRE-FINISHED ALUMINUM FIN TO MATCH CURTAIN WALL SCALE: 1" = 1'-0" 22 PARAPET WALL @ SCREEN
