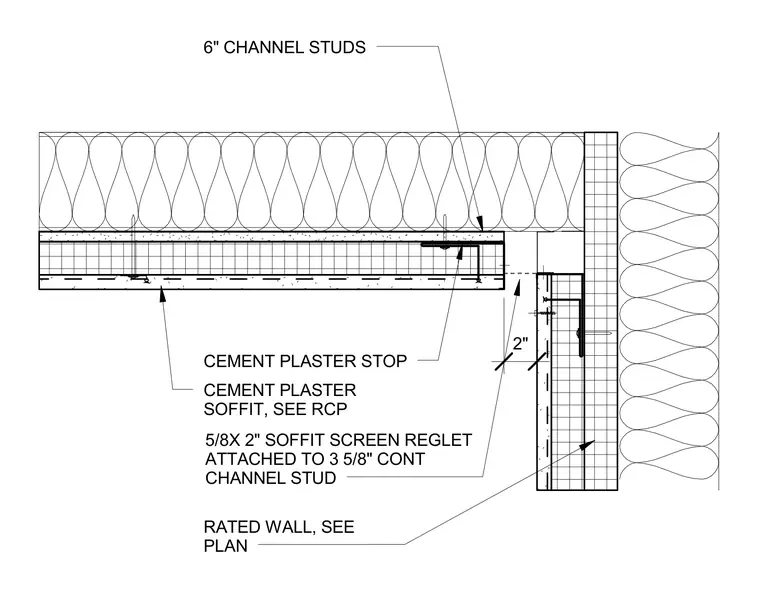

A cement plaster soffit is framed with six-inch channel studs and finished with a cement plaster stop. A five-eighths by two-inch soffit screen reglet attaches to a continuous three and five-eighths-inch channel stud at the perimeter. The assembly interfaces with a rated wall assembly sized per plan, maintaining a two-inch clearance gap.
CEMENT PLASTER SOFFIT, SEE RCP RATED WALL, SEE PLAN 2" CEMENT PLASTER STOP 6" CHANNEL STUDS 5/8X 2" SOFFIT SCREEN REGLET ATTACHED TO 3 5/8" CONT CHANNEL STUD
