Architectural · A-4YRBV

Elevator Pit Waterproofing at Base of Wall

Materials

Elements

Walls Stem Walls Waterproofing / Flashing Drainage Reinforcing

About this detail

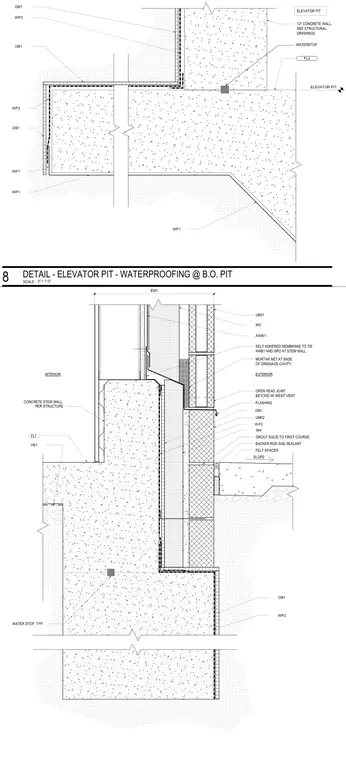

A twelve-inch concrete wall connects to the pit slab with a typical waterstop embedded in the construction joint. The exterior face receives a self-adhered waterproofing membrane tied to the air and water barrier above, protected by drainage board layers. At the transition to the cavity wall, a metal flashing sits over solid grouted masonry with a mortar net, weep vent, felt spacer, backer rod, and sealant at the open head joint. An interior self-adhered membrane ties the air barrier and waterproofing at the stem wall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
