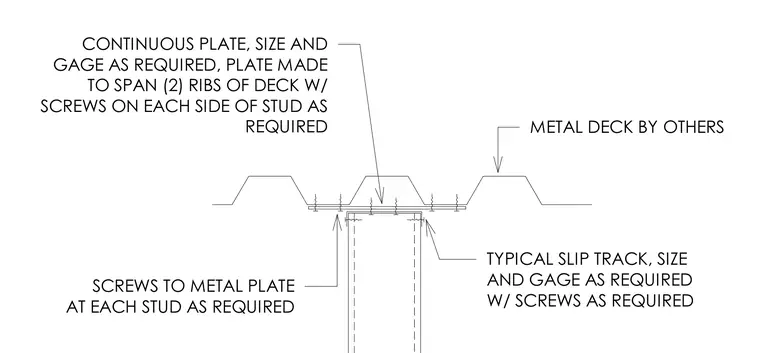

A continuous steel plate sized and gauged per plan spans two ribs of the overhead metal deck and attaches with screws on each side of the stud. A typical slip track sized and gauged per plan caps the cold-formed steel stud wall below, connected with screws to the metal plate at each stud. The metal deck above is provided by others.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
