Traffic yellow arrows are finished with a three inch black border typical. Stencil paint is applied directly on the floor slab using reflectorized paint, with the specific type referenced on the plans. The layout dimensions measure eight feet in overall length by four feet in overall height, featuring a thirty degree angle at the arrow head and three inch wide stripes.

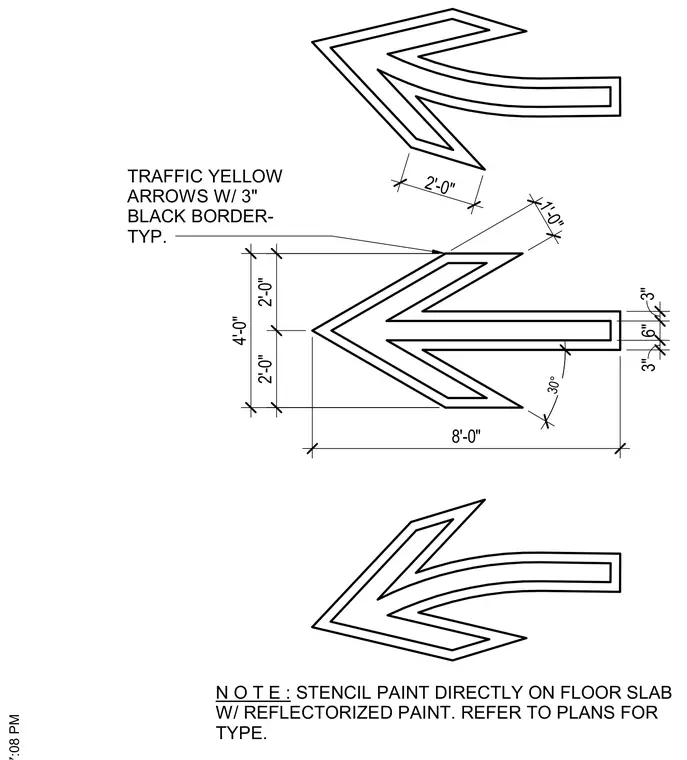

TRAFFIC YELLOW ARROWS W/ 3" BLACK BORDER- TYP. N O T E : STENCIL PAINT DIRECTLY ON FLOOR SLAB W/ REFLECTORIZED PAINT. REFER TO PLANS FOR TYPE. 8'-0" 3" 6" 3" 1'-0" 30° 2'-0" 2'-0" 2'-0" 4'-0"
