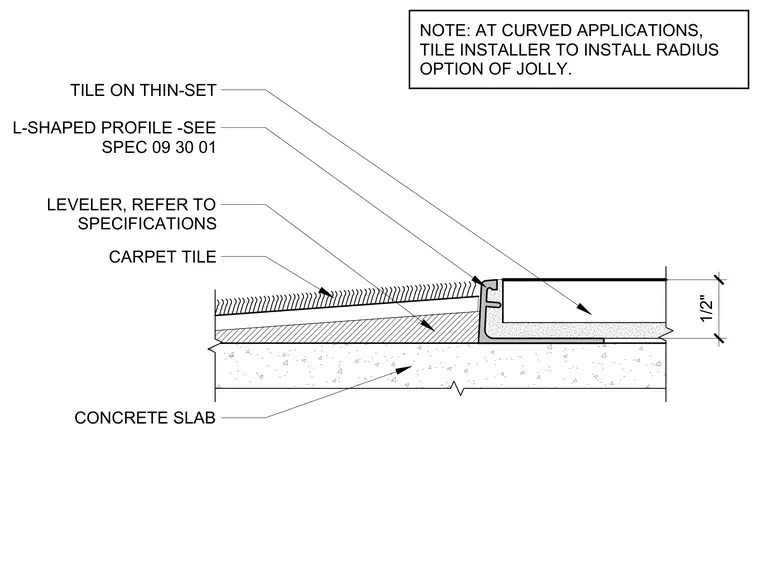

A transition assembly joins carpet tile to ceramic tile over a concrete slab. The carpet is set on a leveler bed and abuts an L-shaped profile edge trim. The ceramic tile is set on a thin-set mortar bed within the metal profile, maintaining a total height of 1/2 inch. At curved applications, the tile installer uses a radius option of the jolly profile.
CONCRETE SLAB CARPET TILE L-SHAPED PROFILE -SEE SPEC 09 30 01 TILE ON THIN-SET LEVELER, REFER TO SPECIFICATIONS 1/2" NOTE: AT CURVED APPLICATIONS, TILE INSTALLER TO INSTALL RADIUS OPTION OF JOLLY.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
