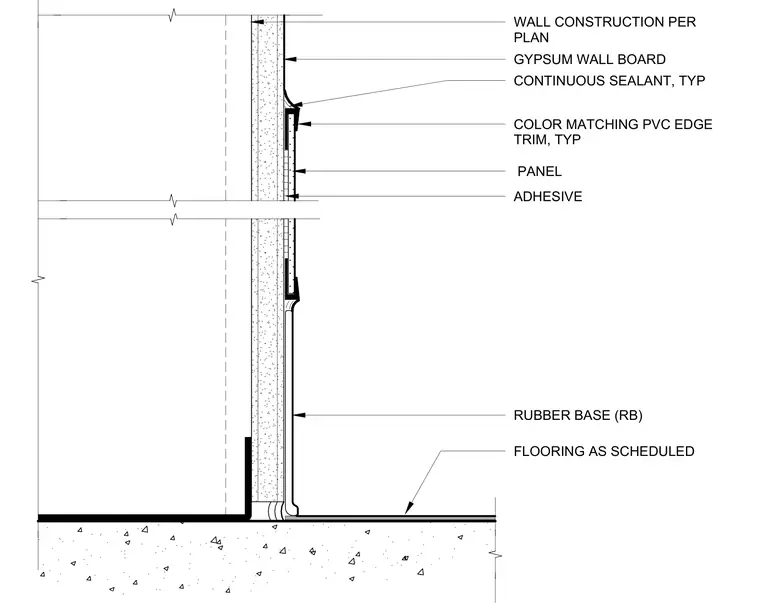

Fiber-reinforced plastic or plastic wall panels adhere directly to gypsum wallboard construction per plan. Color-matching PVC edge trim secures the top of the wainscot panel, sealed continuously at the junction with the drywall substrate. A rubber base transitions the wall finish down to the flooring as scheduled at the slab level.
GYPSUM WALL BOARD RUBBER BASE (RB) CONTINUOUS SEALANT, TYP COLOR MATCHING PVC EDGE TRIM, TYP PANEL ADHESIVE FLOORING AS SCHEDULED WALL CONSTRUCTION PER PLAN
