Peterbilt 11x27 Double Face LED Sign Assembly

About this detail

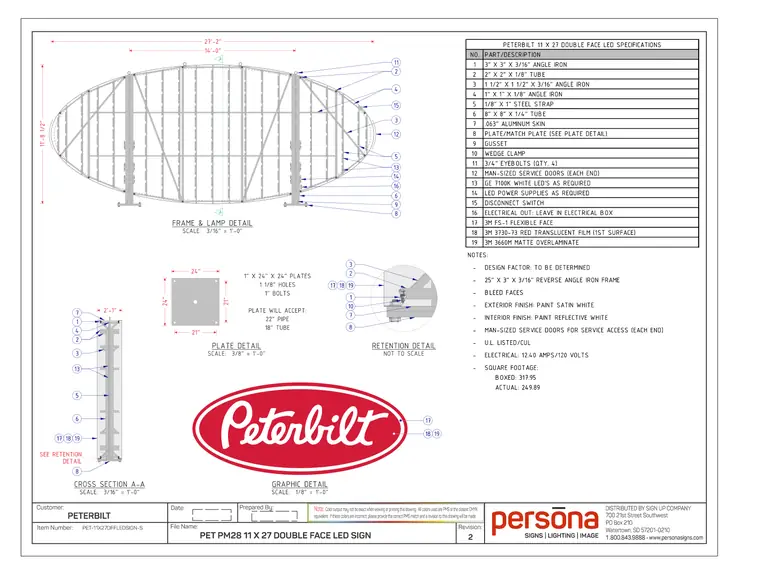

The sign assembly consists of a structural frame built from 3 inches by 3 inches by 3/16 inches angle iron and 8 inches by 8 inches by 1/4 inches tubes, clad with .063 inches aluminum skin. Internal components include 1 1/2 inches by 1 1/2 inches by 3/16 inches angle iron, 1 inch by 1 inch by 1/8 inches angle iron, 2 inches by 2 inches by 1/8 inches tubing, and 1/8 inches by 1 inch steel straps secured by gussets and wedge clamps. The faces feature 3M FS-1 flexible face, 3M 3730-73 red translucent film, and 3M 3660M matte overlaminate applied over a reverse angle iron frame. Electrical components include GE 7100K white LEDs, LED power supplies, a disconnect switch, and an electrical outlet left in the electrical box. The overall frame measures 27 feet 2 inches wide by 11 feet 8 1/2 inches high with a depth of 2 feet 1 inch, supported by 1 inch by 24 inches by 24 inches base plates with 1 1/8 inches holes and 1 inch bolts.
