Structural · A-4XZFS

Bridge Base Plate Grid 7X

Materials

Steel

Elements

Bracing Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Expansion / Slip Connection

About this detail

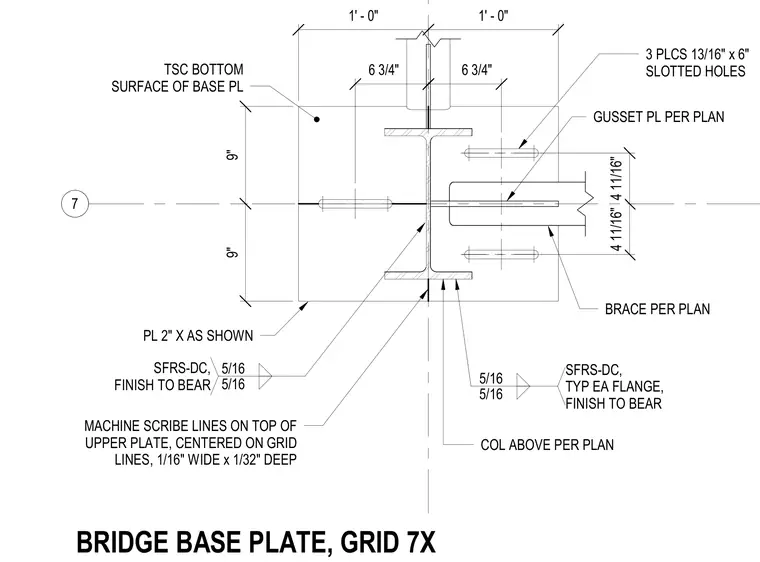

This structural steel bridge base plate connection features a two-inch thick plate supporting a column and brace sized per plan. The upper plate includes machine-scribed alignment lines one-sixteenth of an inch wide by one-thirty-second of an inch deep, centered on the grid lines in three locations. Three thirteenth-sixteenth by six-inch slotted holes accommodate movement, while five-sixteenth inch fillet welds attach the structural members with finishes to bear. Gusset plates and braces connect symmetrically across the assembly per structural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
