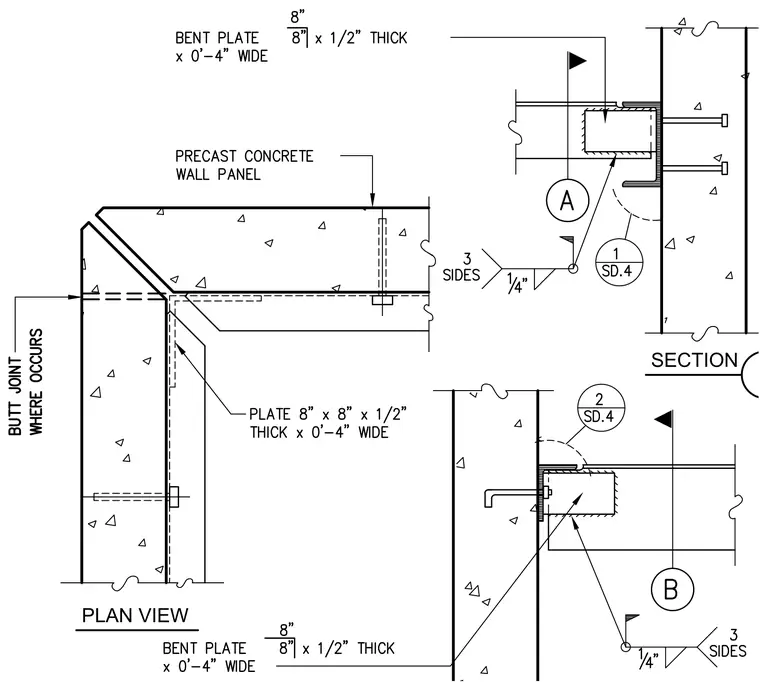

This plan detail and section illustrate a precast concrete wall panel corner assembly featuring a butt joint condition. The connection incorporates an 8-inch by 8-inch by 1/2-inch thick steel plate measuring 0 feet 4 inches wide and an 8-inch by 1/2-inch thick bent plate measuring 0 feet 4 inches wide. Steel elements are welded using a 1/4-inch fillet weld applied on three sides as indicated by the weld symbols. Embedded anchors secure the steel tubing and plates into the precast concrete wall panels.
