The gate assembly is framed with four-inch square steel tube jambs set over eighteen-inch diameter by three-foot deep concrete gate jamb post footings. Steel plates measuring six by eighteen inches by three-sixteenths of an inch are welded to the steel framing to receive gate hardware, an electric strike, an intercom, and a card reader. Push and pull hardware along with a self-closer are installed per the door schedule. A one-foot wide by six-inch deep concrete mow strip runs beneath the assembly adjacent to a concrete walk.

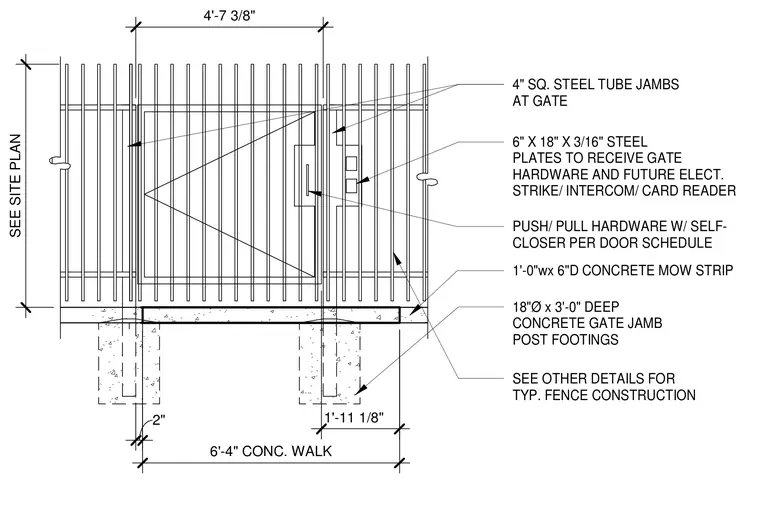

18"Ø x 3'-0" DEEP CONCRETE GATE JAMB POST FOOTINGS 1'-0"wx 6"D CONCRETE MOW STRIP 6" X 18" X 3/16" STEEL PLATES TO RECEIVE GATE HARDWARE AND FUTURE ELECT. STRIKE/ INTERCOM/ CARD READER PUSH/ PULL HARDWARE W/ SELF- CLOSER PER DOOR SCHEDULE 4" SQ. STEEL TUBE JAMBS AT GATE SEE OTHER DETAILS FOR TYP. FENCE CONSTRUCTION 2" 6'-4" CONC. WALK 1'-11 1/8" 4'-7 3/8" SEE SITE PLAN
