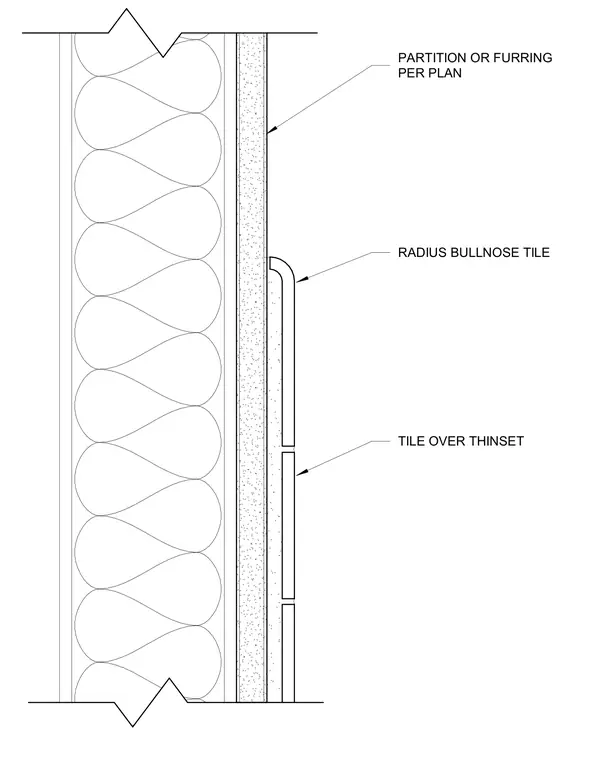

This wall section details a restroom tile wainscot installed over a stud partition or furring sized per plan. Tile is adhered over thinset mortar, terminating at the top with a radius bullnose tile piece to create a clean finished edge.
