Architectural · A-4XJN9

Coiling Door Jamb Detail at HSS Frame

Materials

Steel Timber / Wood

Elements

Doors Waterproofing / Flashing Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

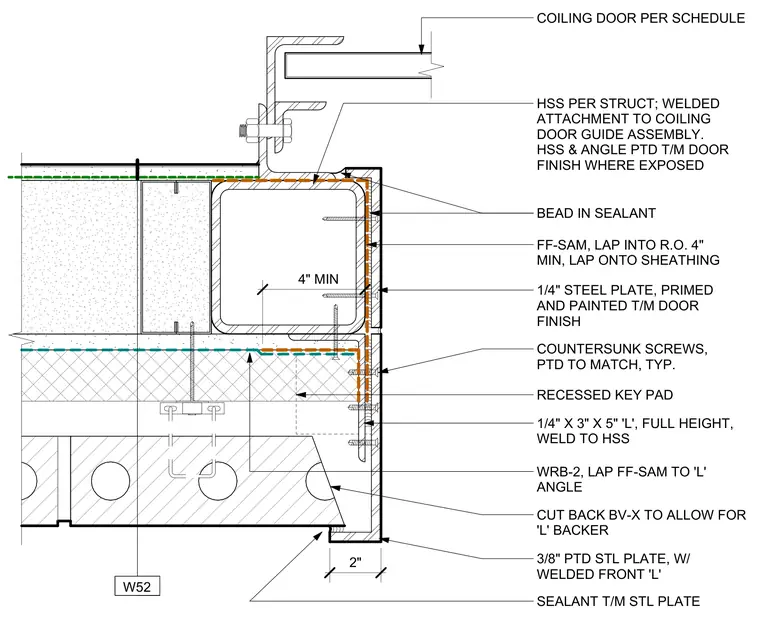

This plan detail shows the jamb assembly for a coiling door set against a hollow structural section frame. A full-height one-quarter-inch by three-inch by five-inch steel angle is welded to the hollow structural section, receiving a three-eighths-inch painted steel plate with a welded front angle using countersunk screws painted to match. Weather-resistant barriers and flashings lap into the rough opening a minimum of four inches and onto the sheathing embedded in sealant. A recessed keypad is integrated into the wall assembly adjacent to the door guide. The hollow structural section and exposed angles are painted to match the door finish, with sealant applied at the steel plate joints.
