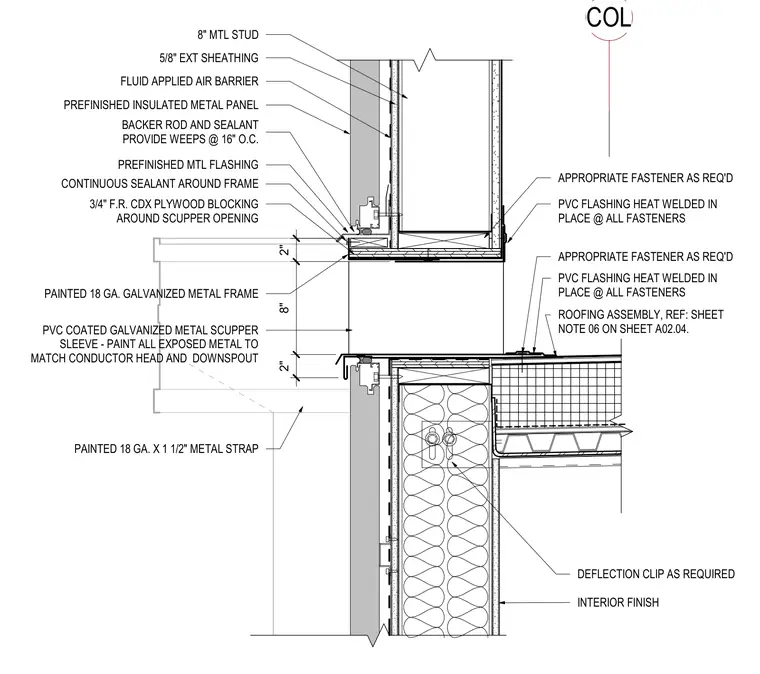

This wall penetration detail features a PVC-coated galvanized metal scupper sleeve set within an eight-inch opening framed by three-quarter-inch fire-retardant CDX plywood blocking. A painted eighteen-gauge galvanized metal frame and one-and-a-half-inch metal strap secure the assembly, complemented by continuous sealant and PVC flashing heat-welded at all fasteners. The exterior wall incorporates prefinished insulated metal panels over a fluid-applied air barrier, five-eighths-inch exterior gypsum sheathing, and eight-inch metal studs with weep holes spaced at sixteen inches on center. The roof assembly ties into the lower curb with appropriate fasteners and a deflection clip as required.
2" 8" 2" 3/4" F.R. CDX PLYWOOD BLOCKING AROUND SCUPPER OPENING CONTINUOUS SEALANT AROUND FRAME PVC COATED GALVANIZED METAL SCUPPER SLEEVE - PAINT ALL EXPOSED METAL TO MATCH CONDUCTOR HEAD AND DOWNSPOUT PAINTED 18 GA. X 1 1/2" METAL STRAP PAINTED 18 GA. GALVANIZED METAL FRAME PVC FLASHING HEAT WELDED IN PLACE @ ALL FASTENERS APPROPRIATE FASTENER AS REQ'D PVC FLASHING HEAT WELDED IN PLACE @ ALL FASTENERS APPROPRIATE FASTENER AS REQ'D ROOFING ASSEMBLY, REF: SHEET NOTE 06 ON SHEET A02.04. 8" MTL STUD 5/8" EXT SHEATHING PREFINISHED INSULATED METAL PANEL INTERIOR FINISH DEFLECTION CLIP AS REQUIRED FLUID APPLIED AIR BARRIER PREFINISHED MTL FLASHING BACKER ROD AND SEALANT PROVIDE WEEPS @ 16" O.C. COL
