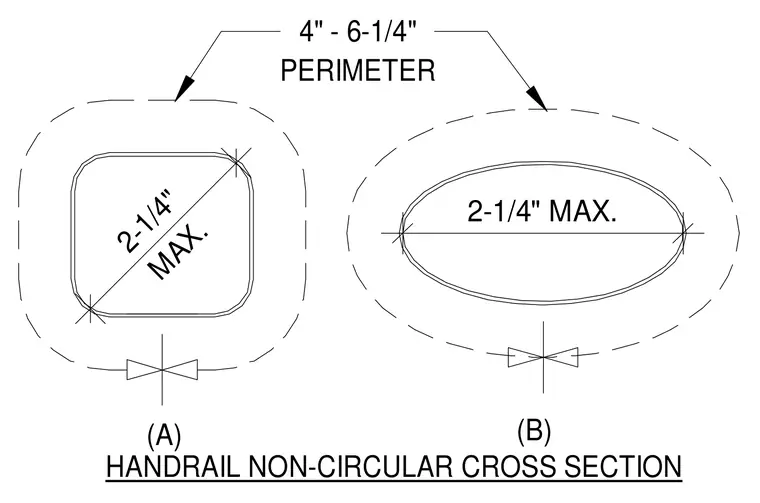

Handrail profiles feature non-circular cross sections with a maximum dimension of two and one-quarter inches and an overall perimeter ranging between four inches and six and one-quarter inches. Profile A shows a rounded rectangular profile, while profile B shows an elliptical shape. Both profiles maintain the specified maximum cross-section and grip perimeter dimensions required for code compliance.
2-1/4" MAX. 2-1/4" MAX. (A) (B) HANDRAIL NON-CIRCULAR CROSS SECTION 4" - 6-1/4" PERIMETER
