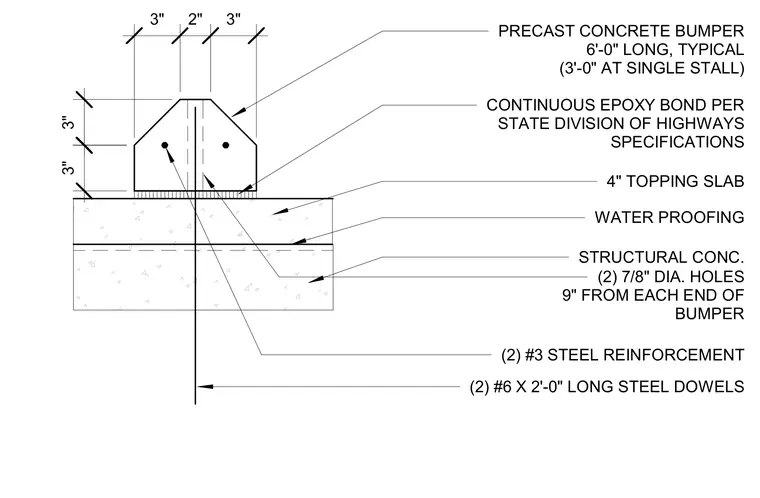

A precast concrete bumper measuring six feet long typically, or three feet long at a single stall, is anchored to a four-inch topping slab over waterproofing and structural concrete. The bumper is reinforced with two number three steel bars and features two seven-eighths-inch diameter holes located nine inches from each end. Two number six steel dowels, two feet long, extend through the bumper and into the structural concrete below. A continuous epoxy bond conforming to state division of highways specifications secures the underside of the bumper to the topping slab.
CONTINUOUS EPOXY BOND PER STATE DIVISION OF HIGHWAYS SPECIFICATIONS (2) #3 STEEL REINFORCEMENT PRECAST CONCRETE BUMPER 6'-0" LONG, TYPICAL (3'-0" AT SINGLE STALL) 4" TOPPING SLAB (2) 7/8" DIA. HOLES 9" FROM EACH END OF BUMPER (2) #6 X 2'-0" LONG STEEL DOWELS WATER PROOFING STRUCTURAL CONC. 3" 3" 3" 2" 3"
