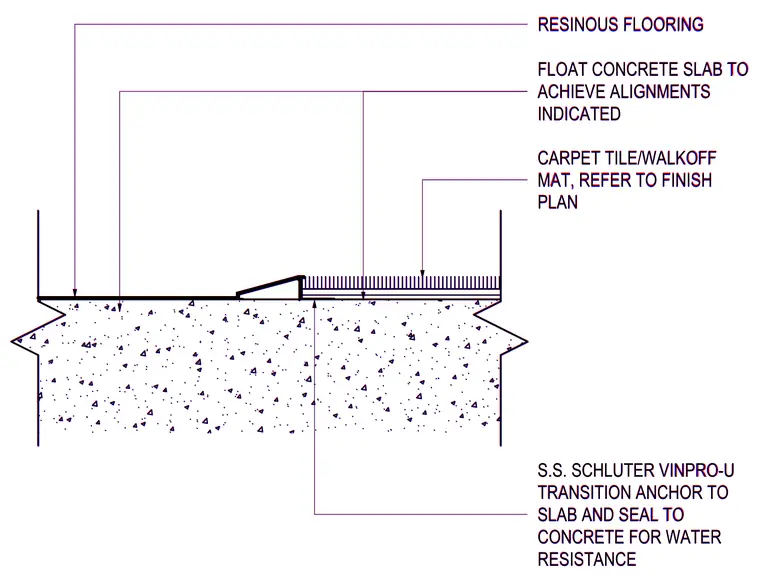

The concrete slab is floated to achieve the required surface alignments for the different floor finishes. Resinous flooring meets carpet tile or walkoff mat at a stainless steel Schluter Vinpro-U transition anchor. The transition strip is anchored directly to the concrete slab and sealed for water resistance.
FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN RESINOUS FLOORING FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN RESINOUS FLOORING
