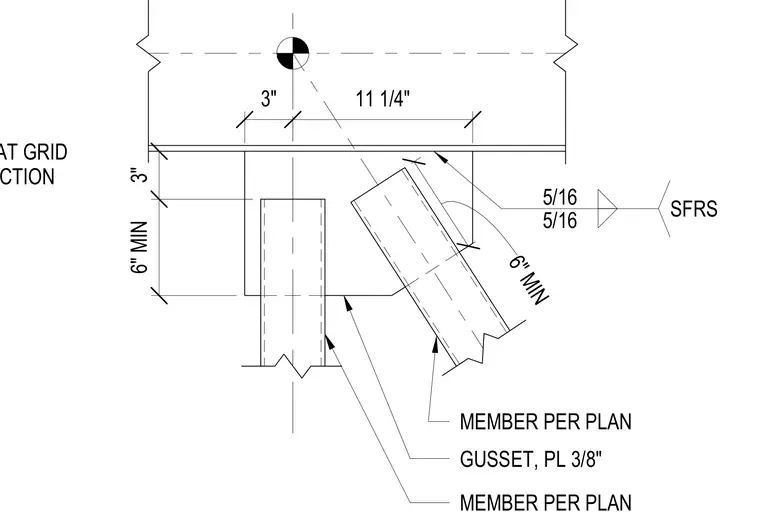

An extended shear plate connects structural steel framing members per plan with a three-eighths-inch gusset plate. Five-sixteenths-inch fillet welds secure the SFRS member to the gusset plate. Dimensions indicate an eleven-and-one-quarter-inch offset along the grid line with six-inch minimum clearances.
5/16 5/16 SFRS MEMBER PER PLAN GUSSET, PL 3/8" MEMBER PER PLAN 6" MIN 3" 6" MIN 3" 11 1/4" EXTENDED SHEAR TAB NA AT GRID 15, USE TYP SHEAR CONNECTION
