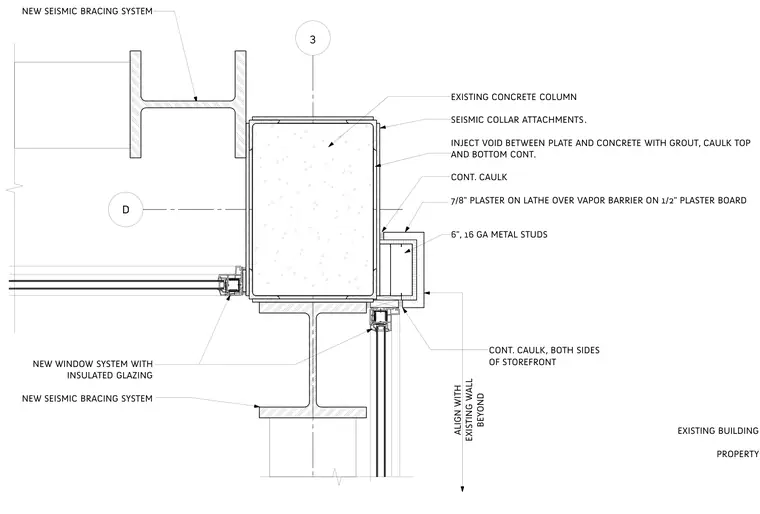

An existing concrete column receives a seismic collar attachment with continuous caulk at top and bottom, and grout injected into the void between the plate and concrete. A new seismic bracing system connects to the column assembly. Adjacent construction features six-inch, sixteen-gauge metal studs with a half-inch plaster board, vapor barrier, and seven-eighths-inch plaster on lath. A new window system with insulated glazing integrates with the assembly, featuring continuous caulk on both sides of the storefront.
EXISTING CONCRETE COLUMN SEISMIC COLLAR ATTACHMENTS. INJECT VOID BETWEEN PLATE AND CONCRETE WITH GROUT, CAULK TOP AND BOTTOM CONT. CONT. CAULK 7/8" PLASTER ON LATHE OVER VAPOR BARRIER ON 1/2" PLASTER BOARD 6", 16 GA METAL STUDS 3 D ALIGN WITH EXISTING WALL BEYOND CONT. CAULK, BOTH SIDES OF STOREFRONT NEW WINDOW SYSTEM WITH INSULATED GLAZING NEW SEISMIC BRACING SYSTEM NEW SEISMIC BRACING SYSTEM EXISTING BUILDING LINE PROPERTY LINE
