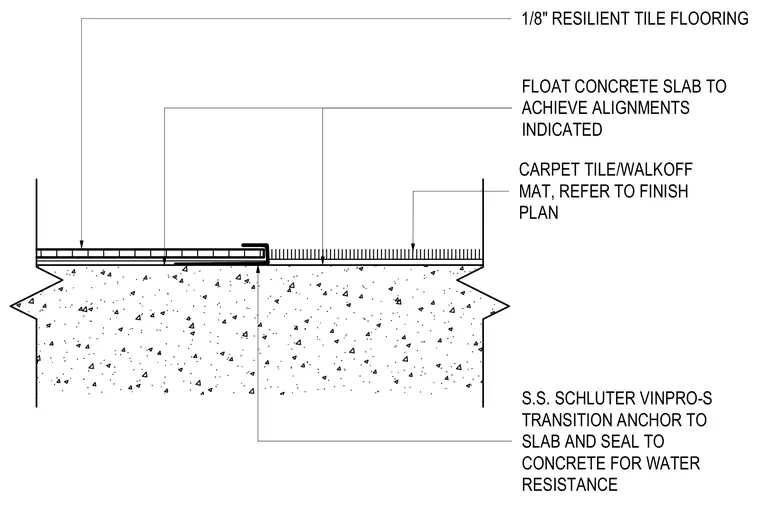

One-eighth-inch resilient tile flooring meets carpet tile or walkoff mat over a floated concrete slab that achieves the alignments indicated. A stainless steel Schluter Vinpro-S transition anchor fastens to the concrete slab and seals for water resistance.
FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED S.S. SCHLUTER VINPRO-S TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN 1/8" RESILIENT TILE FLOORING
