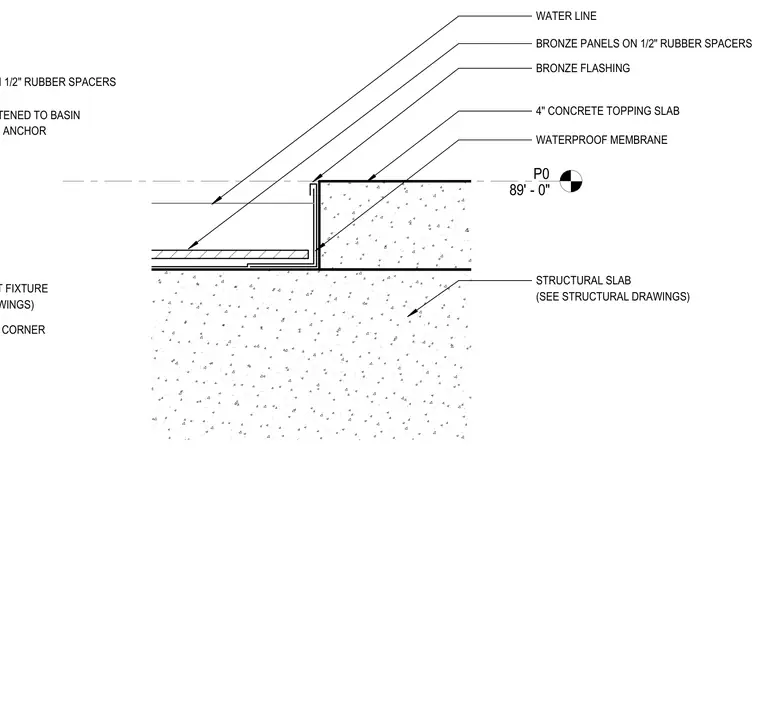

Bronze panels are mounted on one-half inch rubber spacers over a bronze flashing and waterproof membrane applied to a concrete structural slab and four-inch concrete topping slab. A three-sixteenth-inch stainless steel angle is fastened to the basin with stainless steel concrete anchors. A submersible light fixture is installed per lighting drawings alongside a water pump at the southwest corner.
3/16" SS ANGLE FASTENED TO BASIN WITH SS CONCRETE ANCHOR SUBMERSIBLE LIGHT FIXTURE (SEE LIGHTING DRAWINGS) WATER PUMP @ SW CORNER BRONZE PANELS ON 1/2" RUBBER SPACERS P0 89' - 0" BRONZE PANELS ON 1/2" RUBBER SPACERS BRONZE FLASHING WATERPROOF MEMBRANE STRUCTURAL SLAB (SEE STRUCTURAL DRAWINGS) 4" CONCRETE TOPPING SLAB WATER LINE
