Architectural · A-4WRC8

Accessible Building Entrance Signage and Mounting Details

Elements

About this detail

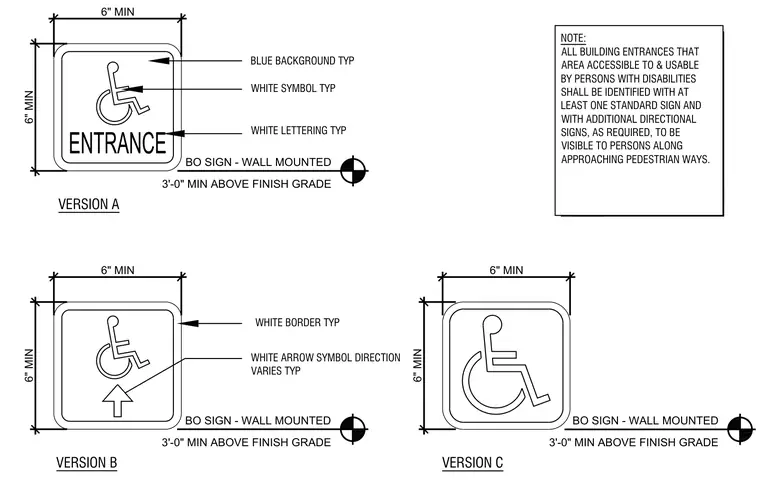

Accessible building entrances are identified with standardized wall-mounted signage featuring a blue background, white border, white wheelchair symbol, and white lettering or directional arrows. The signs maintain minimum dimensions of six inches by six inches and are mounted three feet minimum above the finish grade. Additional directional signs are provided along approaching pedestrian ways as required for compliance.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
